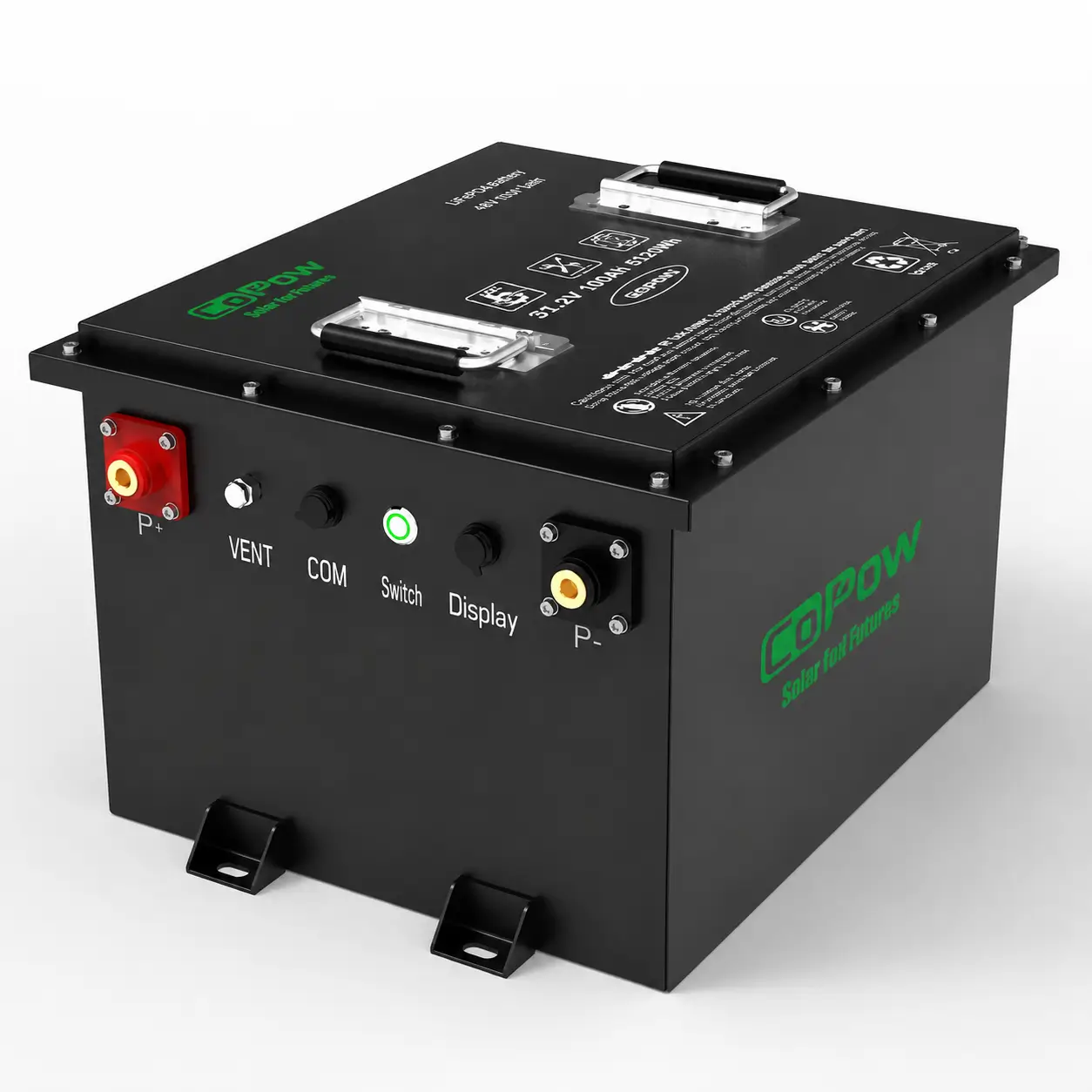

36v Lithium Battery for Golf Cart

Technical Specifications
Nominal Voltage: 36v (38.4v) (12S)
Nominal Capacity: 105 Ah
Stored Energy: 4.03 kWh
Dimension (L×W×H) In Inch: 13.0 × 13.1 × 9.6 inch
Dimension (L×W×H) In Millimeter: 330 × 334 × 245 mm
Weight lbs. (kg) No Counterweight: 72.7 lbs (33 kg)
Typical Mileage Per Full Charge: 48–64 km (30–40 miles, depending on load and terrain)
Cycle Life: 1C @100% DOD ≥ 4,000 cycles / 0.2C @100% DOD ≥ 6,000 cycles
IP Rating: IP65
Certificates: CE, UL, MSDS, UN38.3, RoHS

Send Inquiry

Product Introduction



Unlock Maximum Performance: Upgrade Your Golf Cart with CoPow 36V 105Ah Lithium Battery

Upgrading to the COPOW 36V 105Ah Lithium Battery isn't just about replacing a part; it's about a total performance overhaul. Here is how this swap changes your driving experience:



  • Double the Range, 10+ Year Life Enjoy 2x the runtime and 6,000+ cycles. It's built to outlast your golf cart, providing a decade of reliable power.
  • Consistent Power on Any Terrain Say goodbye to "voltage sag." Get stable, full-throttle output even when conquering steep hills or heavy loads.
  • True Zero-Maintenance The sealed LiFePO4 design means no watering, no acid corrosion, and no mess. Just install it and forget it.
  • 3x Faster Charging Full power in a fraction of the time. Rapid charging ensures your cart is topped up and ready between rounds.
  • Ultra-Lightweight Agility At only 25% of the weight of lead-acid, you'll enjoy faster acceleration, sharper handling, and less wear on your suspension.
  • Smart Bluetooth Monitoring Real-time data at your fingertips. Track health, voltage, and charge levels instantly via the COPOW App.



The Composition of CoPow Lithium Golf Cart Batteries



Upgrade Your Ride with Copow Lithium Golf Cart Battery Conversion Kit

Accessories of CoPow Lithium Golf Cart Batteries



Each CoPow lithium golf cart battery comes with a dedicated charger at no extra cost. If your region requires a specific plug type, CoPow can provide a customized charger to meet your needs.

Beyond the charger, all the accessories shown in the images above are optional and can be selected according to your actual requirements.



The Benefits of CoPow Golf Cart Battery Management System





Universal Lithium Golf Cart Battery Compatible with Most Golf Cart Brands

Customer Case 2 of CoPow Lithium Iron Phosphate Golf Cart Batteries





36v Technical Specifications

Item General Parameter
Rated Capacity 105 Ah
Standard Voltage 38.4 V (12S)
Standard Charge Voltage 43.8 V
Charging Method CC–CV
Charge Current Normal 20 A / Max 100 A
Cut-off Voltage 30 V
Standard Continuous Discharge Current 105 A (1C)
Max Continuous Discharge Current 200 A (BMS)
Peak Discharge Current 500 A @ 3 s (BMS)
Communications Bluetooth / CAN / RS485
Display Screen Standard configuration
Charger 15 A–50 A optional
Total Weight About 33 kg (half of 72 V version)
Impedance (Max, @1000 Hz) ≤ 35 mΩ
Operating Temperature Charge: 0–55 ℃ / Discharge: −20–60 ℃
Storage Environment Temperature: 10–45 ℃ / Humidity: ≤ 75% RH
Cycle Life 1C @ 100% DOD ≥ 3,500 cycles0.2C @ 100% DOD ≥ 6,000 cycles
Self-discharge Rate ≤ 3% per month
Protection Level IP65
Battery Dimensions L = 330 ± 2 mm / W = 334 ± 2 mm / H = 245 ± 2 mm (length is half of 72 V version)





View Product Catalog PDF



Office Address: Chentou Xin Times Building, No. 2009 Pingshan Avenue Pingshan District Shenzhen, China.



48v Lithium battery certification





CoPow Lithium Golf Cart Battery – Shipping & Total Cost Overview

Section Details
1. Competitive Direct-from-Factory Pricing

Tiered Discounts: Flexible pricing based on order volume; bulk and dealer orders save more

Sample Support: Special pricing for initial sample units to verify Grade A quality

2. All-Inclusive "Landed Cost" Solutions

DDP Shipping: USA, Europe, Australia, and other regions – includes freight, customs clearance, and import duties

Real-Time Shipping Optimization: Logistics team calculates the most cost-effective route based on your Zip Code

3. Accurate Total Cost Quote in 3 Steps

- Product Unit Price (based on quantity)

- Customized Freight (Sea, Air, Express)

- Tax & Duty Estimates (clearly itemized)

Why Request a Quote from CoPow?

- 2-Hour Response: Preliminary estimate within 2 business hours

- No Hidden Fees: Formal quote is exactly what you pay



Production Process Of Copow LiFePO4 Battery



Why CoPow Battery Is Safer



successful Case of COPOW Lithium Golf Cart Batteries

Golf Cart Battery Manufacturers With Smart BMS







Electrical Wiring Layout of CoPow Golf Cart Batteries

Wiring configuration of COPOW golf cart batteries







Custom Solutions for CoPow Golf Cart Batteries

Custom Golf Cart Batteries



Customized LIFEPO4 Golf Cart Batteries







CoPow Remote Monitoring Golf Cart Battery

CoPow Remote Monitoring Golf Cart Battery



Battery-Management-System-with-mobile-app-connectivity



Why CoPow Battery Is Smarter



TOP CoPow R&D Team

With 20 years experience on average.

R& D team

With specially-appointed professors as the backbone, CoPow R&D team continuously committed to technological innovation.
