From smartphones and electric vehicles to golf carts, forklifts, and energy storage systems, lithium-ion batteries have become one of the most important energy carriers in modern society. When selecting or comparing batteries, you will often come across a key parameter: energy density.
Why do some batteries offer longer runtime despite being smaller and lighter? Why is the driving range of new energy vehicles constantly improving without a corresponding increase in battery pack size? These questions are closely related to battery energy density.
Energy density not only affects a battery's weight, size, and runtime but also largely determines the scenarios in which it can be used. For electric vehicles, forklifts, golf carts, marine vessels, and energy storage systems, higher energy density typically translates to longer runtime and better space utilization.
This article will provide a detailed overview of the concept of lithium-ion battery energy density, calculation methods, differences between various chemical systems, and key factors affecting energy density, to help readers select the lithium-ion battery solution best suited to their needs.
What Is Energy Density in a Lithium-Ion Battery?
Battery energy density refers to the amount of electrical energy a battery can store per unit volume, i.e., the ratio of the energy contained in the battery to its weight. It reflects the battery's energy storage capacity.
Energy density is typically measured in terms of energy density by weight (Wh/kg), which indicates the amount of electrical energy a battery can store per kilogram.
However, in the battery industry, we also use energy density by volume (Wh/L) as a metric; this unit indicates the amount of electrical energy a battery can store per liter.
Higher energy density means that, for the same weight or volume, the battery can provide longer runtime or greater capacity, making it a key indicator of performance for lithium-ion batteries, electric vehicle batteries, and energy storage batteries.
For electric vehicles, golf carts, forklifts, and portable electronic devices, higher energy density typically translates to lighter battery weight, reduced installation space requirements, and longer operating times.
How Is Lithium-Ion Battery Energy Density Measured?
The method for calculating the energy density of a lithium-ion battery is straightforward: simply multiply the battery's rated voltage by its capacity to obtain the total energy, then divide that value by either the battery's weight or volume.
For example, if a battery has a nominal capacity of 100 Ah and a voltage of 3.2 V, its total energy is 320 Wh. If the battery weighs 2 kg, its energy density by weight is 160 Wh/kg.
In actual testing, engineers conduct full charge-discharge cycles on the battery under standard temperature and discharge conditions. By recording the battery's discharge curve, they calculate the usable energy to obtain more accurate energy density data.
Why Energy Density Matters in Battery Selection?
Some batteries prioritize longer service life, while others prioritize higher energy density. Why is that?
Smaller size, saving space.
High-energy-density batteries can deliver the same amount of energy in a smaller package, making them suitable for both forklifts and cell phones.
Lightweight

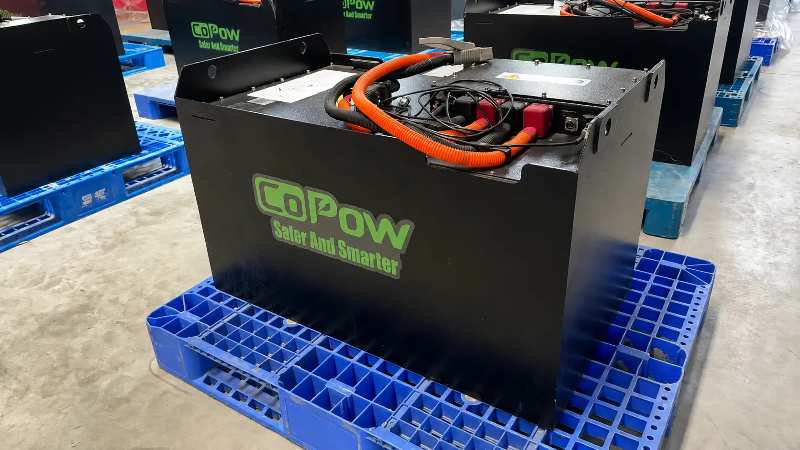

At the same energy density, the smaller the battery, the lighter it is. In the electric forklift sector, lightweight lithium-ion batteries can replace bulky lead-acid batteries, making battery handling much easier. Of course, lithium-ion batteries themselves also serve as counterweights to balance the forklift's center of gravity.
On the other hand, we shouldn't blindly pursue high energy density. Just imagine-the fact that a tiny smartphone lithium-ion battery contains such a high amount of energy is actually quite dangerous.
Which Type of Rechargeable Battery Has the Highest Energy Density?
Among the rechargeable batteries currently available on the market and in widespread use, lithium-ion batteries offer the highest energy density.
In particular, high-nickel ternary lithium-ion batteries (such as NCA and NCM batteries) have the highest energy density, typically reaching 200–300 Wh/kg or even higher.
These batteries are commonly used in electric vehicles and electronic devices because of their compact size, which allows for significant space savings.
| Rechargeable Battery Type | Energy Density (Wh/kg) |
|---|---|
| Lead-Acid Battery | 30–50 |
| Nickel-Cadmium (NiCd) Battery | 40–60 |
| Nickel-Metal Hydride (NiMH) Battery | 60–120 |
| Lithium Iron Phosphate (LiFePO4) Battery | 90–160 |
| Lithium Manganese Oxide (LMO) Battery | 100–150 |
| Lithium Titanate (LTO) Battery | 50–90 |
| Lithium Nickel Manganese Cobalt Oxide (NCM) Battery | 150–250 |
| Lithium Nickel Cobalt Aluminum Oxide (NCA) Battery | 200–300 |
| Lithium Polymer (Li-Po) Battery | 150–250 |
| Solid-State Lithium Battery (Emerging Technology) | 300–500+ |
Note: The values above represent typical industry ranges. Actual energy density may vary depending on cell design, material chemistry, manufacturing processes, and testing conditions.
Average Energy Density of Different Lithium-Ion Chemistries
Lithium-ion batteries form a broad family that includes ternary lithium batteries, lithium iron phosphate batteries, lithium cobalt oxide batteries, lithium manganese oxide batteries, lithium titanate batteries, and lithium manganese iron phosphate batteries. Although they all contain lithium and have similar structures, their chemical systems differ significantly, resulting in variations in energy density.
Next, let's compare the different types of lithium-ion batteries to see exactly how much their energy densities differ.
Lithium Titanate (LTO) Batteries
Lithium titanate batteries are a special type of lithium-ion battery. Compared to common lithium iron phosphate (LFP) and ternary lithium (NMC/NCA) batteries, their most significant difference lies in the anode material. The anode material in lithium titanate batteries is not graphite, but lithium titanate.
Advantages:
- Extremely fast charging and discharging speeds, allowing for a full charge in just a few minutes
- Very long cycle life, ranging from 10,000 to 30,000 cycles
- Excellent performance in low-temperature environments, maintaining good discharge capacity even at -30°C or lower
- High safety, with no lithium dendrite formation and a low risk of thermal runaway
Disadvantages:
- Relatively low energy density, ranging from 50 to 80 Wh/kg
- Larger cell size and heavier weight
- Higher manufacturing costs
Applications:
City buses, rail transit, grid energy storage, port equipment, mining vehicles, and more.
Lithium Cobalt Oxide (LCO) Batteries
Lithium cobalt oxide batteries have an energy density of approximately 150–200 Wh/kg, placing them in the upper-middle range among all lithium-ion battery types. Their cathode consists of lithium cobalt oxide, while the anode is made of graphite (carbon).
Due to their high energy density, compact size, and light weight, lithium cobalt oxide batteries are widely used in the 3C digital sector, such as in ultra-thin laptops.
Advantages:
- High energy density
- Very compact size
Disadvantages:
- Cobalt, a key raw material, is becoming increasingly scarce
- Safety risks; highly sensitive to temperature and charge level; poor thermal stability
Applications:
Cell phones, laptops, camera batteries, etc.
Lithium Nickel Manganese Cobalt Oxide (NMC) Batteries
The cathode material in lithium nickel manganese cobalt oxide batteries consists of three metals: nickel (Ni), manganese (Mn), and cobalt (Co); therefore, they are often referred to as "ternary material" batteries. Their energy density is similar to that of the previous type of battery, ranging from 150 to 220 Wh/kg.
These batteries are widely used in the electric vehicle sector, and some early models from Tesla, BMW, and Audi utilized this type of battery.
Advantages:
- High energy density and strong power output
- Moderate size
- Slightly better than lithium titanate
- Relatively balanced performance; safer than LCO, lighter and with higher energy density than LFP, and more suitable for power applications than LTO
Disadvantages:
- High raw material costs
- Safety is not as good as LFP
- Poor high-temperature performance
- High demands on the battery management system
Applications:
Electric vehicles, medical devices, electric bicycles, etc.
Lithium Iron Phosphate (LFP) Batteries
Lithium iron phosphate batteries have an energy density of 90–160 Wh/kg, which is in the upper-middle range for lithium-ion batteries. Their cathode consists of lithium iron phosphate, while the anode is composed of a graphite electrode and a metal backing.
The greatest advantage of this battery lies in its service life. It can be understood as trading off some energy density for a longer service life, thereby striking a clever balance between the two-offering sufficient power and good range performance while also being highly durable.
Advantages:
- High safety: non-flammable, non-toxic, and non-explosive
- Lightweight
- Relatively inexpensive raw materials compared to other lithium-ion batteries
- Long service life
- High-temperature resistance
- Relatively low cost; contains no rare metals such as nickel or cobalt
- Easy maintenance
Disadvantages:
- Slightly lower voltage plateau
- Slightly weaker range
- Relatively poor low-temperature performance; requires a heating module for normal operation
Applications:
Electric golf carts, forklifts, boats, energy storage systems, off-grid living, RVs, and more.
Lithium Nickel Cobalt Aluminum Oxide (NCA) Batteries
NCA (lithium nickel cobalt aluminate) has long been used in high-end electric vehicles and the aerospace industry. Its cathode material consists of nickel (Ni), cobalt (Co), and aluminum (Al), while the anode is made of graphite, with an energy density of approximately 200–280 Wh/kg.
Advantages:
- Above-average energy density
- Long operating range
- High power output
- Relatively long cycle life
Disadvantages:
- High manufacturing costs
- High raw material costs
- Low thermal stability
Applications:
Electric vehicles, aerospace equipment, high-performance energy storage systems
Lithium-Ion Battery Energy Density vs Other Battery Types
| Battery Type | Energy Density (Wh/kg) | Energy Density (Wh/L) |
|---|---|---|
| Lead-Acid Battery | 30–50 | 60–110 |
| AGM Battery | 35–60 | 80–120 |
| Gel Battery | 35–60 | 80–120 |
| Lithium Titanate (LTO) | 50–90 | 120–220 |
| Lithium Iron Phosphate (LiFePO4) | 90–160 | 220–350 |
| Sodium-Ion Battery | 90–180 | 160–350 |
| Lithium Manganese Iron Phosphate (LMFP) | 140–190 | 300–420 |
| Lithium Nickel Manganese Cobalt (NMC) | 150–260 | 300–700 |
| Lithium Cobalt Oxide (LCO) | 180–240 | 400–700 |
| Lithium Nickel Cobalt Aluminum (NCA) | 200–300 | 400–750 |
Factors That Influence Lithium-Ion Battery Energy Density
The chemical system determines the upper limit of a lithium-ion battery's energy density, while the lower limit is influenced by electrode materials, cell internal design, battery form factor, manufacturing processes, temperature, charge-discharge cycle life, and safety requirements.
Higher energy density is not necessarily better; there is a trade-off between energy density and other factors.
Therefore, you need to make a comprehensive assessment based on the specific application scenario.
1. Battery Chemistry: Different battery chemistries have different energy densities.
2. Electrode Materials: High-quality anode and cathode materials can increase a battery's energy density. For example, high-nickel cathode materials can increase the amount of energy a battery stores, while silicon-based anodes have a higher theoretical capacity than graphite. In the future, as materials science continues to advance, electrodes will be able to store more electrical energy per unit weight.
3. Cell Design and Structure: The internal structure of a battery cell also affects energy density. By reducing the proportion of inactive materials-such as separators, current collectors, and casings-more space can be allocated to active materials, thereby increasing energy density. Large prismatic cells and CTP (Cell-to-Pack) technology are prime examples of approaches to enhance system energy density.
4. Battery Size and Format: Energy density varies across different battery formats: pouch cells achieve high energy density per unit weight due to their lightweight packaging materials; cylindrical cells offer superior structural strength and consistency; while prismatic cells excel in space utilization.
5. Manufacturing Technology: Advanced manufacturing processes can improve material utilization and battery consistency. For example, higher compaction density, more precise coating processes, and more advanced electrode designs can accommodate more active material within the same volume, thereby increasing the battery's energy density.
6. Operating Temperature: Temperature affects the efficiency of internal chemical reactions within the battery. In extremely low-temperature environments, the effective capacity the battery can deliver decreases, thereby reducing the actual usable energy density. Prolonged operation at high temperatures may accelerate material aging, leading to battery capacity degradation.
7. Battery Aging and State of Health: As the number of charge-discharge cycles increases, battery capacity gradually degrades. As the battery ages, the amount of energy it can store decreases, even if its weight and volume remain constant. Good charging habits and a suitable operating environment help slow this process.
8. Safety Requirements: Increasing energy density requires striking a balance between safety and performance. While adding protective structures, using thicker thermal insulation materials, or implementing more complex battery management systems can enhance safety, these measures also increase the battery's weight and volume, thereby affecting the final system energy density.
How Energy Density Affects Battery Runtime?
Energy density determines the amount of electrical energy a battery can store for a given weight or volume, and is therefore closely related to the battery's runtime.
Generally, when the power consumption of a device is constant, the higher the total energy stored in the battery, the longer it can provide power.
For example, consider two batteries, each weighing 10 kilograms: one is a lithium-ion battery with an energy density of 150 Wh/kg, while the other is a lead-acid battery with an energy density of only 40 Wh/kg. Consequently, the former can store approximately 1,500 Wh of energy, whereas the latter can store only about 400 Wh.
Under the same 500 W load, the lithium-ion battery can theoretically operate for about 3 hours, while the lead-acid battery can operate for less than 1 hour.
For applications such as electric vehicles, golf carts, forklifts, RVs, and boats, higher energy density means longer range and operating time without increasing battery weight or installation space. This is one of the key reasons why an increasing number of devices are upgrading from traditional lead-acid batteries to lithium-ion batteries.
The Future of High-Energy-Density Lithium Batteries
With the rapid development of industries such as electric vehicles, energy storage systems, drones, and AI data centers, market demand for high-energy-density lithium-ion batteries continues to grow. In the future, advancements in battery technology must not only increase energy density but also strike a better balance between safety, cycle life, charging speed, and cost.
In terms of materials, high-nickel ternary batteries (including NMC and NCA) will remain a key technological pathway for increasing energy density. By increasing the nickel content and optimizing the material structure, batteries can store more electrical energy for the same weight.
Additionally, silicon-carbon anode technology is gradually being commercialized. Since the theoretical capacity of silicon is far higher than that of traditional graphite anode materials, it is expected to further increase battery energy density in the future.
Furthermore, solid-state batteries are viewed as a major development direction for next-generation high-energy-density batteries. By utilizing solid electrolytes, they are expected to achieve higher energy density while significantly improving battery safety and reducing the risk of thermal runaway. Currently, many automakers and battery companies are actively advancing the R&D and mass production of solid-state batteries.
At the same time, innovations in battery structure continue to drive improvements in energy density.
For example, technologies such as CTP (Cell-to-Pack) and CTC (Cell-to-Chassis) reduce the use of modules and structural components, thereby increasing the utilization of internal space within the battery pack. This allows more space to be allocated to energy storage materials, ultimately enhancing energy density at the vehicle or system level.
However, the future development of the battery industry will not simply pursue the highest energy density.
For applications such as golf carts, forklifts, RVs, marine vessels, and energy storage systems, battery safety, service life, and total cost of ownership are often more critical than achieving the absolute limit of energy density.
Consequently, lithium iron phosphate (LiFePO4) and the new lithium manganese iron phosphate (LMFP) batteries are expected to maintain strong growth; while high-energy-density batteries will primarily be used in sectors with extremely stringent weight and space constraints, such as new energy vehicles, aerospace, and high-end mobile devices.
Overall, future trends in high-energy-density lithium-ion batteries will focus on greater energy storage capacity, faster charging speeds, higher safety standards, and lower manufacturing costs to meet the world's growing demand for electrification.
